Troubleshooting tips for setting up a Microsoft 365 VPN

The main advantage of Microsoft 365 is the ability to access Office applications such as Outlook, OneDrive, Skype for Business, and SharePoint regardless of whether you’re directly connected to your organization’s network infrastructure.

Microsoft 365 is centrally hosted in the cloud, so you don’t need to have any server running run it locally (on-premises). In other words, Microsoft 365 is hosted remotely. But there are situations where you might be working remotely through a VPN and find that you need to access Microsoft 365 applications.

Microsoft 365 will not behave differently simply because you use a VPN. However, because all network traffic will be redirected to the VPN adapter, you might experience connectivity issues or even complete connectivity loss.

What does a VPN do?

VPN stands for “Virtual Private Network”. It can be thought of as a safe tunnel through which data flows. Basically, it allows your computer to access the internet and any remote services via an encrypted connection. The most commonly used VPN is the Cisco AnyConnect Secure Mobility Client.

What does a VPN do

A VPN is commonly used when an employee is working from a remote location and needs to access different organizational resources (e.g., network drives, customer database management software, etc.) that are locally hosted by the company and which require a ciphered, secure connection to protect sensitive information.

Additionally, VPNs are often used by external users—consultants from stakeholder companies who work on Microsoft 365 applications configured with multiple company profiles.

For all these reasons, the standard setups that modern organizations rely on must be able to provide and handle VPN connections.

As mentioned, when you use a VPN, all the network traffic is redirected to the VPN adapter, so Microsoft 365 software may potentially experience connectivity issues, which in turn can affect many other Microsoft 365 features, like meetings creation and Skype for Business desktop sharing.

VPN to Microsoft 365 connectivity: 7 troubleshooting tips

1) Docking stations

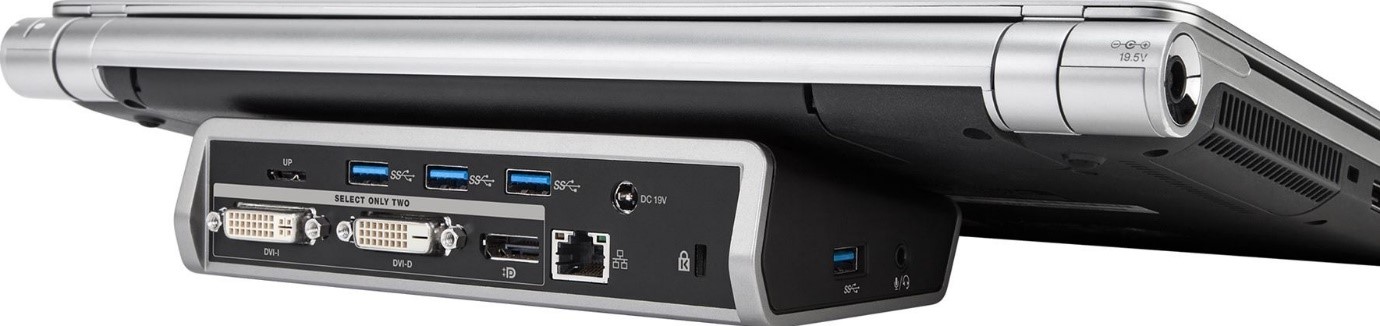

Docking Stations

Docking stations are common in office environments where VPN connections are not used.

However, remote employees or external users might work on setups that include docking stations. In many cases, a docking station’s NIC (Network Interface Card) can interfere with the way network traffic is handled through a VPN.

Take the laptop out of the docking station
Restart the PC
Plug the LAN network cable directly into the laptop
Check if the issue persists

2) Check VPN software configuration settings

Our example is with the Cisco AnyConnect client, but the steps that follow apply to other VPNs as well.

First, note that it’s important to check your VPN settings to ensure that they comply with the organization policies and parameters outlined by your internet service provider or network team.

Also, we need to make sure that our VPN’s default setup is not blocking connections to untrusted servers.

Open your VPN software

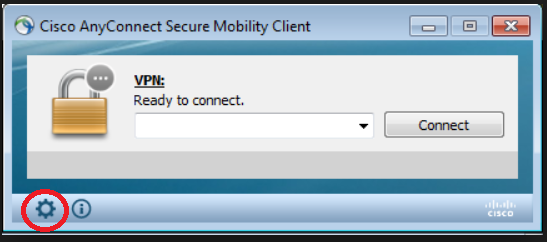

Connect to your VPN server by providing the credentials when prompted
Click on the small gearwheel in your client (Settings)

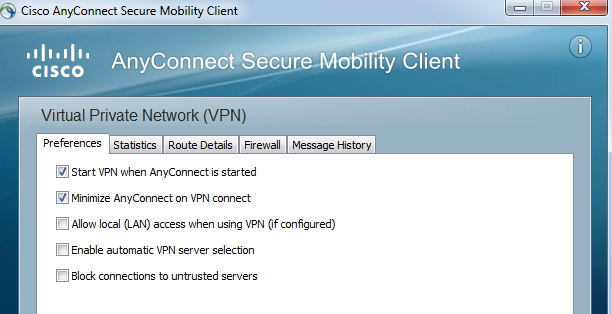

On the Preferences tab, make sure the box “Block connections to untrusted servers” is unchecked

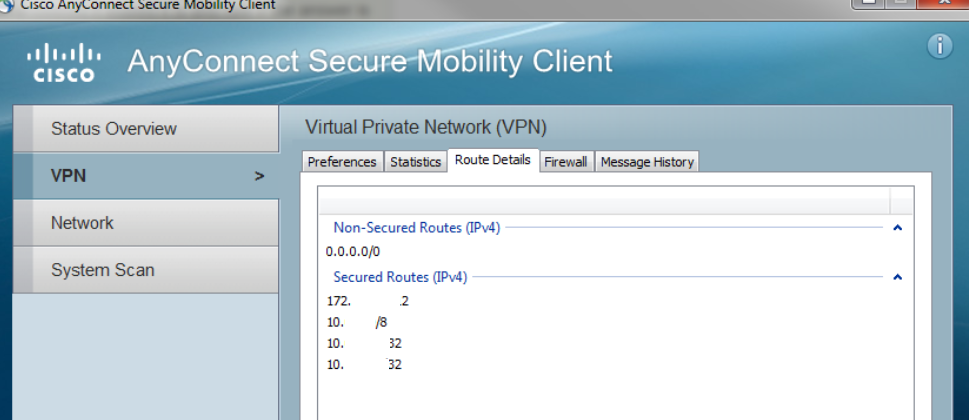

Next, select the tab titled Route Details

Make sure the settings specified here comply with the aforementioned policies and configuration parameters.

3) Configure your VPN for split tunneling

Split tunneling configuration can sometimes alleviate VPN connectivity issues in Microsoft 365 since it avoids bottlenecks (a kind of traffic jam in the network) and saves bandwidth by preventing a section of internet traffic from being redirected to the VPN server.

We need to modify the properties of our VPN connection so that it will not be used as a default gateway for all network traffic.

Open the Control Panel
Go to Network and Internet
Select Network and Sharing Centre

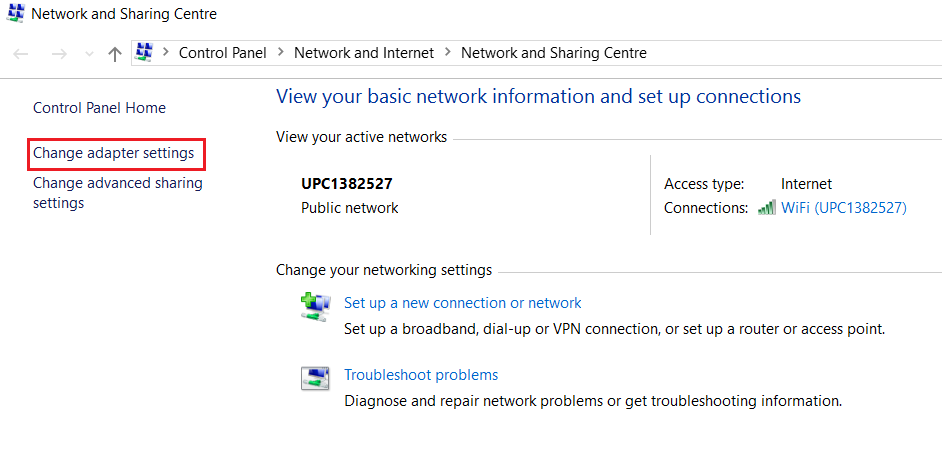

Click on “Change adapter settings” in the left-hand menu
Right click on the VPN connection and select Properties
Select the Networking tab

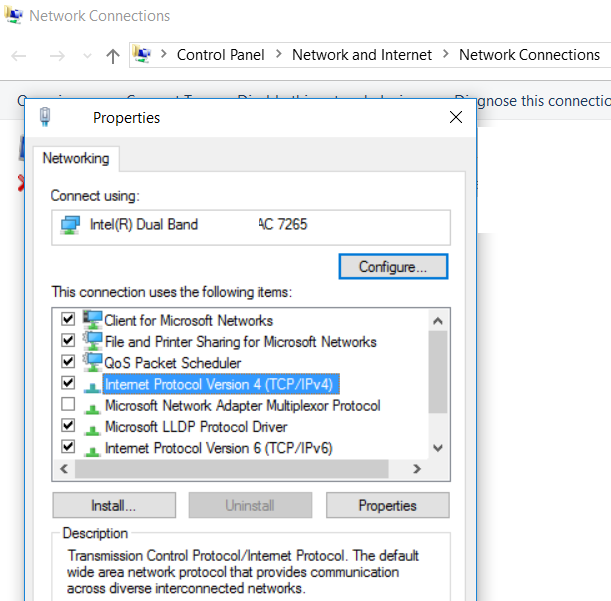

Select Internet Protocol Version 4 (TCP/IPv4), and click Properties
Click Advanced

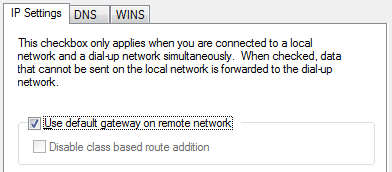

Uncheck the box for “Use default gateway on remote network”
Click OK

Check if your connectivity to Microsoft 365 has improved. If not, be sure to undo these changes.

4) Proxy settings

Always be aware of proxy settings, especially within corporate environments. Large infrastructures often rely on proxy network traffic forwarding.

Open Internet Explorer
Go to Tools, and select Internet Options
Select the Connections tab, and click the LAN settings button in the bottom-right corner
Review your PAC configuration settings

Review your PAC configuration settings

If everything looks good, you can exclude the PAC configuration as the root cause of the issue and proceed with further troubleshooting.

5) Disable the wireless network adapter

In several cases, VPN connectivity issues in Microsoft 365 are caused by the wireless network adapter being enabled. If you are connected via a LAN cable, make sure your wireless network adapter is turned off.

Go to the Control Panel
Select Network and Internet, and go to Network Connections
Right-click on your wireless network connection, and click Disable

wireless network connection

6) Microsoft updates and VPN Connectivity

Sometimes, updating Microsoft 365 is enough to fix VPN connectivity issues.

While the updating process that follows is a bit more complex within a corporate environment (but not necessarily difficult), it is much more straightforward for private Microsoft 365 users.

To begin, open any Office application. We’ll use Word for demonstration purposes.

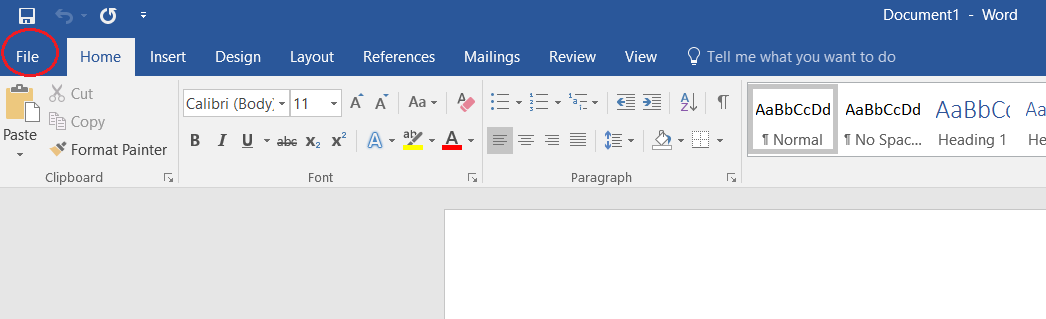

Go to File

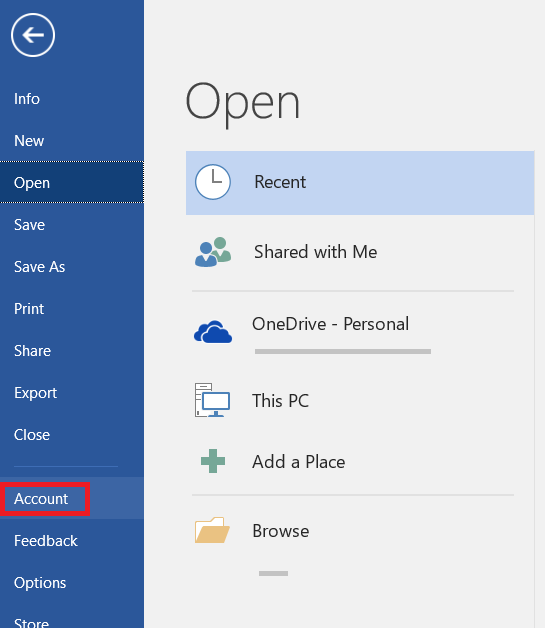

Select Account from the left-hand navigation

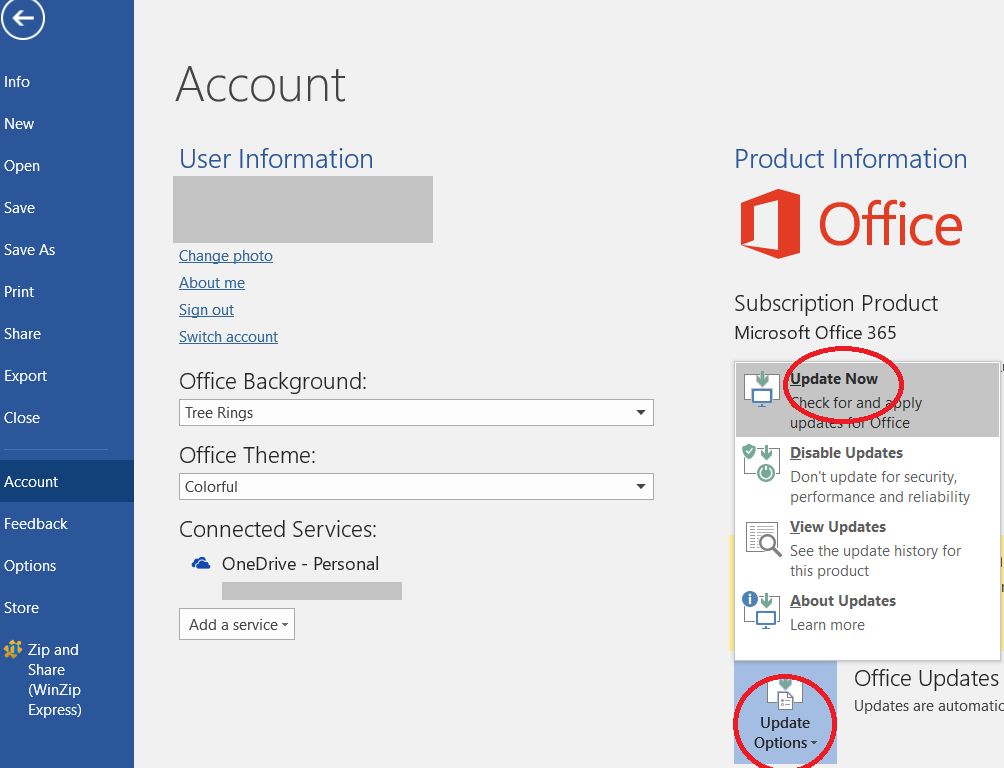

Select Update Options, and click Update Now.

7) Check DNS service configuration

VPNs have a side effect: in most cases, when using Microsoft 365 applications while connected to a VPN and outside the corporate network infrastructure (i.e., at home, in a hotel, or anywhere else), the organization’s DNS servers will be used.

But proximity to these servers is crucial for maintaining a stable connection. The Microsoft 365 servers will normally assign the closest available server to the end user. In any case, if your connection to Microsoft 365 has worsened, you should check your DNS settings with either your ISP or your network team.

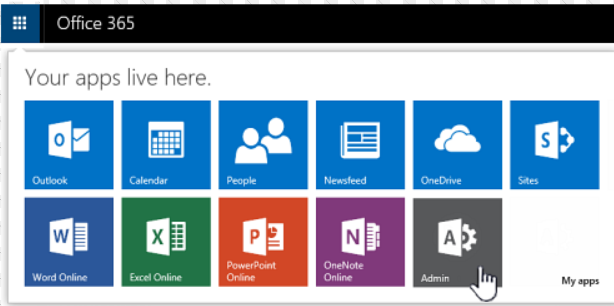

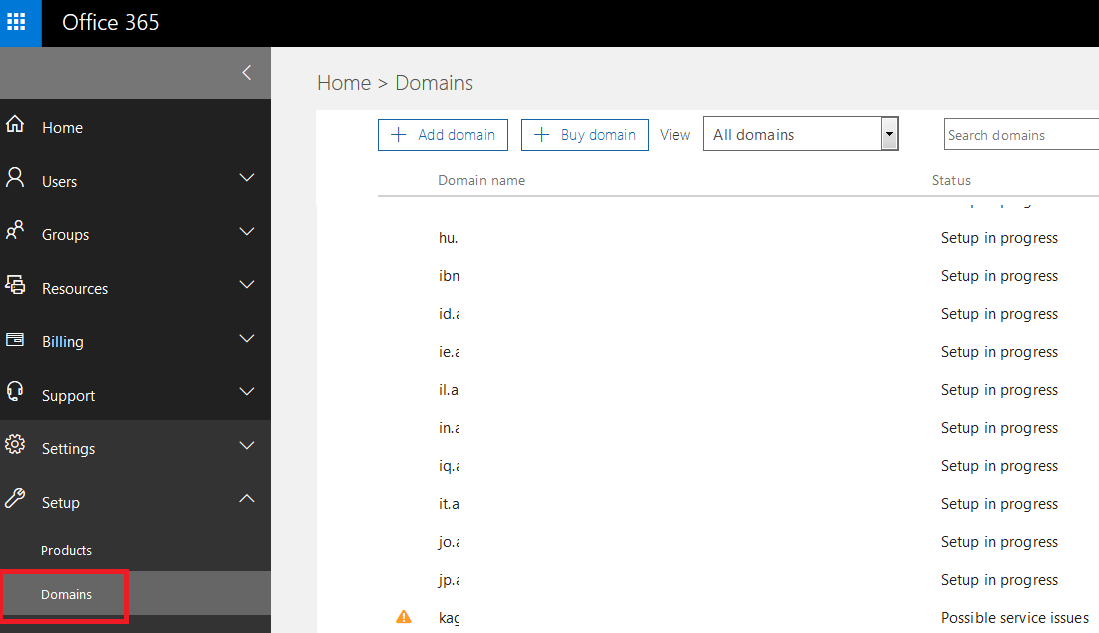

The steps below show how you can access the DNS settings for your Microsoft 365 environment. This feature is exclusive to Administrators, users who can manage a Microsoft 365 account’s organizational structure by creating, reading, updating, deleting, or modifying Microsoft 365 settings. A regular (non-Administrative) user can’t access the admin portal.
